Jelly Candy Machine
Shanghai Kuihong Food Machinery Factory is the best Jelly Candy Machine manufacturer in China. Offering quality product to global customers
Video
  • KH150/300/450/600

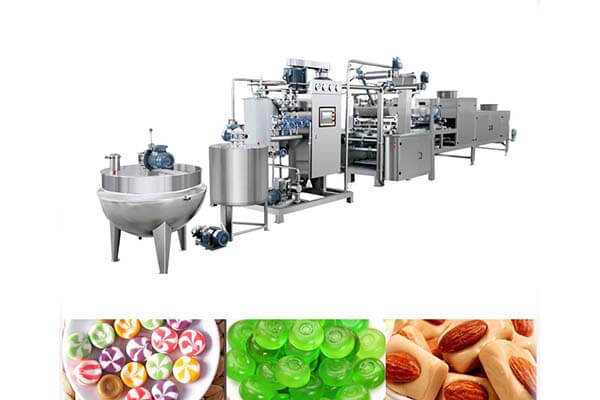

  • KH150/300/450/600 Candy depositing line is based on the 3rd generation machine; it is advanced equipment which can continuously produce various kinds of hard candies under a strict sanitary condition. This line can automatically produce high-quality hard candy, such as single color candy, two-color candy, three-color candy, crystal candy, central-filling candy, etc.The whole line is according to the food GMP standard to set up. The candies have beautiful surface, stripe clear, central-filling enough, good taste, etc advantages. And it is well welcomed by new & old customers. The whole line is not only complying with GMP Contents but also help the candy manufacturers passing the GMP, HACCP, QS authentication easily.

Machine working process

  • Sugar dissolving→ mixing → depositing → cooling → transporting →demoulding → packaging Feature

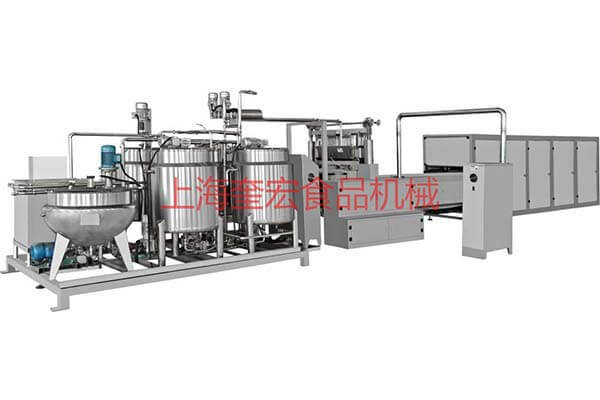

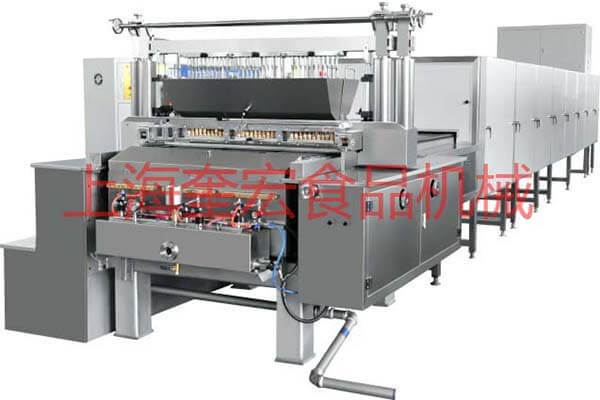

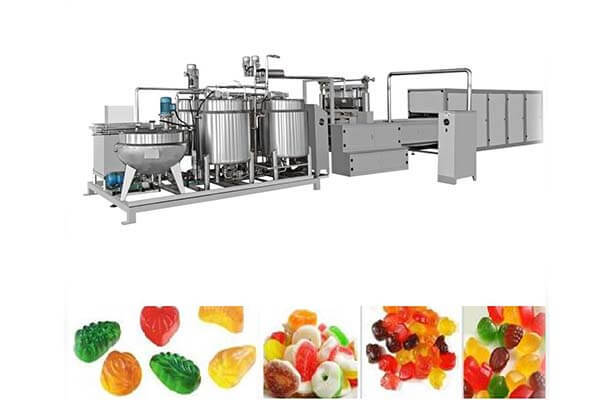

  • 1.The processing line is an advanced plant for producing various shapes and colors of gelatin or pectin based soft candies.

  • 2.It is an ideal equipment for continuous production of high quality candies, such as single/double color candy. By replacing the mould for the depositing head, it can produce jelly candy of various shapes and different colors.

  • 3. It can automatically blend the essence, pigment, acid liquor in accurate quantity ratio.

Technical parameters

Item   Model

KH-150

KH-300

KH-450

Output

120kgs/h

240kgs/h

360kgs/h

Sugar block weight

15g

15g

15g

Pouring times

30-45min

30-45min

30-45min

Steam

Consumption

250kgs/h

300kgs/h

400kgs/h

Pressure

0.2-0.6Mpa

0.2-0.6Mpa

0.2-0.6Mpa

Compressed air

Consumption

0.2m³/min

0.4m³/min

0.6m³/min

Pressure

0.4-0.6Mpa

0.4-0.6Mpa

0.4-0.6Mpa

Environmental requirements

Temperature

20-25℃

20-25℃

20-25℃

Humidity

55%

55%

55%

Total power

18KW/380V

12KW/380V

15KW/380V

Production line total length

9.5m

11m

12m
